Ship Your Hardware with Confidence
Provides unprecedented visibility into design Net Lists and BOMs
Compare design revisions with our Interactive checklists
Assess real time part availability with Octopart API Integration
Validate Power Rail Connections and Decoupling
Verify FPGAs, ASIC, and Connectors connections in your Board/NetList
Explore Power, Diff Pair, and XNETs with Graphical Net Trace
Cross Probe from reports to Parts and Pins in Cadence® Schematics and PCB
Validate System Capture migration from Allegro DE-HDL & Capture
NetBom Inputs and Operations
NetBom Design Inputs include Cadence®, Altium®, Mentor® and Zuken® NetLists, Capture Schematics, Allegro® PCB .brd files, and customer BOM Spreadsheets
This Enables a wide variety of Compare operations including:
PCB to Schematic
PCB to Netlist
PCB to BOM
BOM to BOM
NetList to NetList
NetList to BOM
Schematic to Netlist
Schematic to BOM
Verify Migration to Cadence System Capture

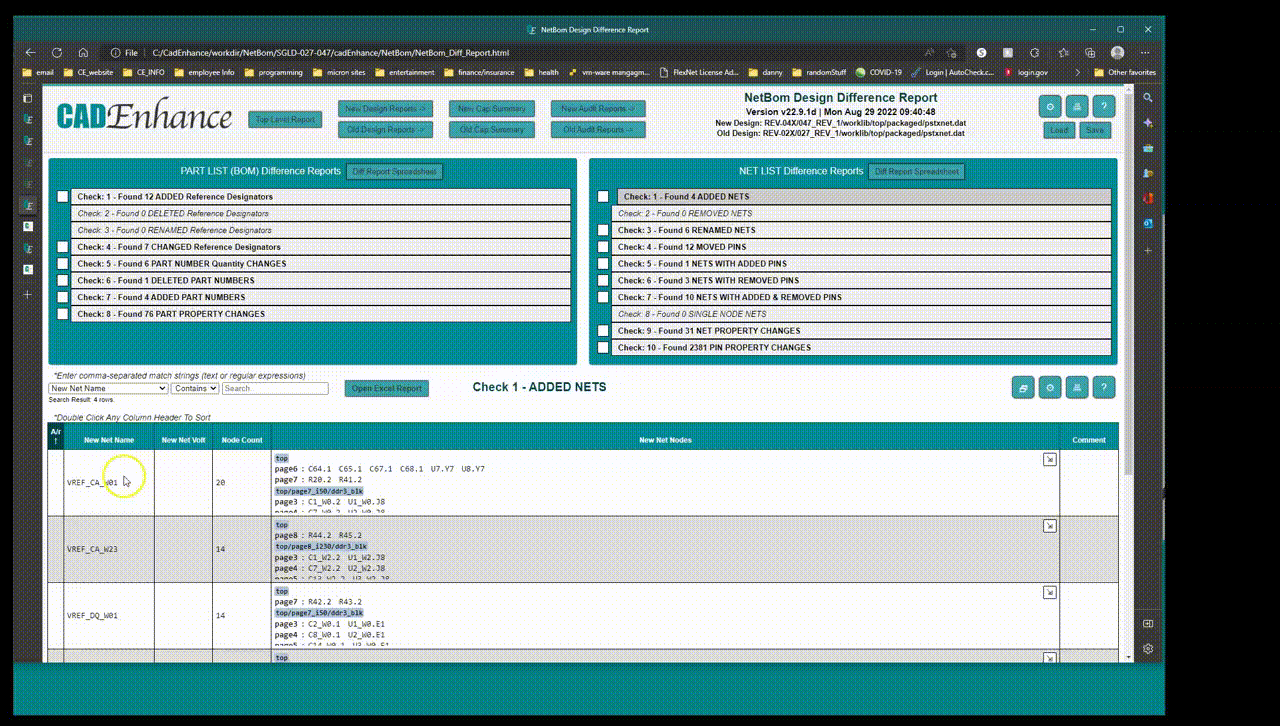

Document Net List and BOM Changes
Creates Interactive BOM and NetList Change Checklists
Click on a Summary to see the detailed Report Below
Detailed reports can be marked up and shared with other users
Creates a Netlist Difference Spreadsheet with a detailed worksheet for each category
Creates BOM Difference Spreadsheet with detailed worksheet for each category

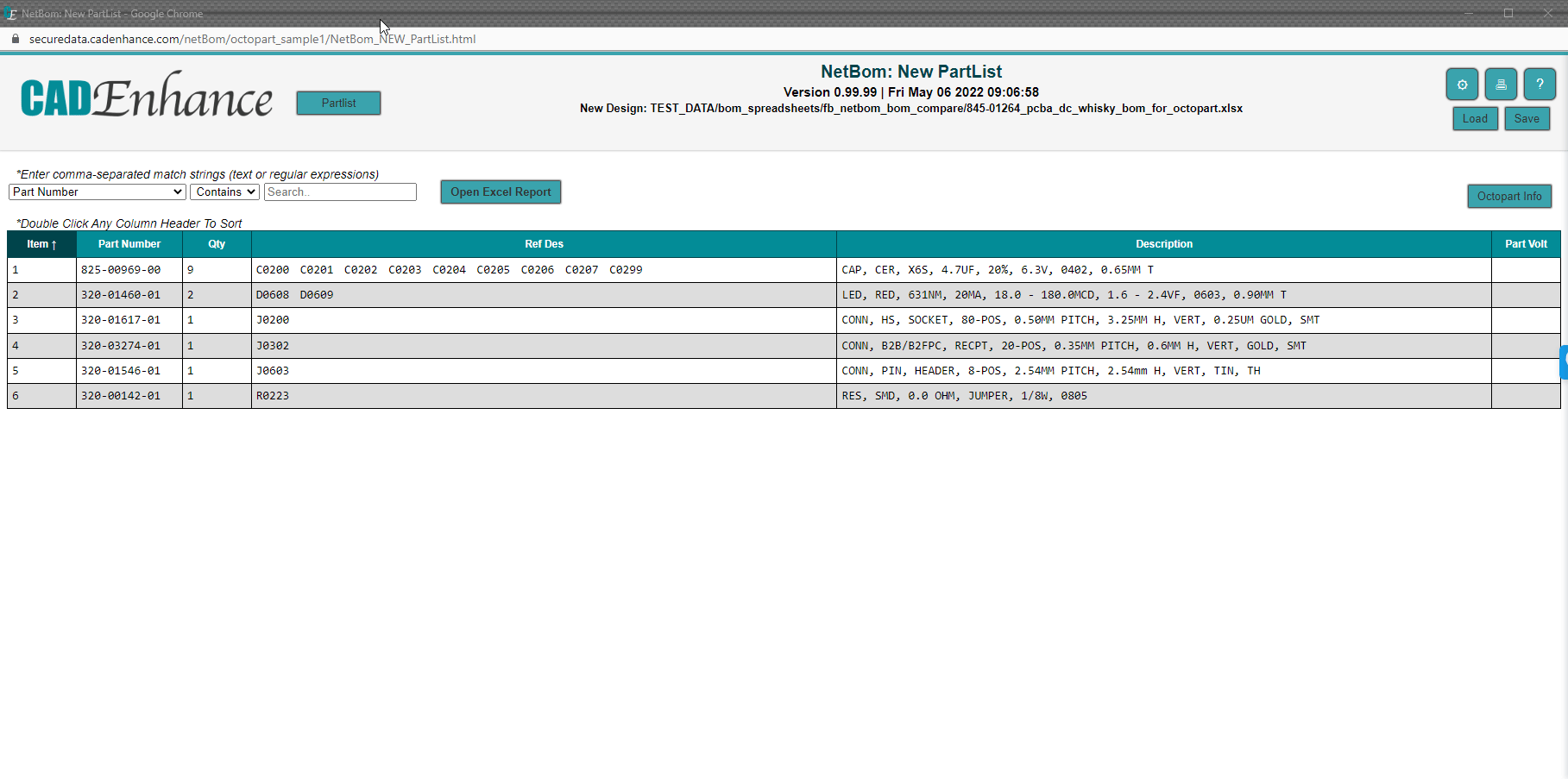

Identify Supply Chain Issues with Octopart API
Now more than ever, when every part in the design seems to be a critical part, It’s important to identify part availability early on in the design cycle
NetBom extracts Part Lists from Schematics, NetLists or Allegro PCB boards and Leverages OctoPart from Nexar to merge real time supplier stock data and pricing information into our interactive BOM reports
Explore Connectivity with Graphical Net Tracing
Validate extended nets extracted from Schematics, NetLists or PCBs
End to End net connections logically displayed on one page
Provides detailed Part and Pin properties for each endpoint
Explore both ends of a Diff Pair
Trace power nets through filters to loads and decoupling
Expand/Collapse ‘Net Stops’ to see more endpoints
Export Views to PDF for documentation
Cross Probe to Net Endpoints in Schematic or PCB
Validate Power Rail Capacitance
Detailed reports of all power rails in the input Designs
Checks every Capacitor in your design and flags overvoltage
Rail Voltage is extracted from Voltage Properties or inferred from NetNames
Edit Rail Voltages
Edit Capacitor Derating Settings for Voltage and Value
Open Graphical Net Trace for selected Power rail
Cross Probe to Selected Capacitors in Schematic or PCB
Verify Device Pinouts and Board to Board Connections
NetBom compares the connections made to selected devices in your NetList to the expected connections defined in a Pin Report. Pin Reports can be AMD/Xilinx, Intel/Altera, Lattice and Microchip FPGA reports, or spreadsheets from vendor datasheets and design specifications
Interactive checklist with a Tab for each Device, and a row for each Device Pin
Net Name to Pin Name matches are initially graded using an advanced Fuzzy Algorithm
Net Voltages are compared to Pin Voltage requirements found in the Pin Reports
Powerful filtering and sorting enable quick focused validation
Mark rows as Accepted or Rejected and save markups to apply to successive runs
Interactive Net List and BOM Reports
NetBom Builds Interactive Net List and BOM reports enabling the user to explore and verify their design.
Filter and Sort Parts and Nets using any column data
Net/Part Voltage is extracted from Properties NetNames or descriptions
RefDes and Pins/Nodes sorted by their block/page in schematic
Cross Probe to find Selected Parts or Net Pins in Schematic or PCB
Select Nets to view with Graphical Net Trace.
Octopart Report identifies critical part shortages
Creates additional Excel, RINF, and CSV reports for customer post-processing
